Model: ERHC-1000-6000-3DB-90D-SMAF-MOD-A
|
E-REON P/N: Z-000044

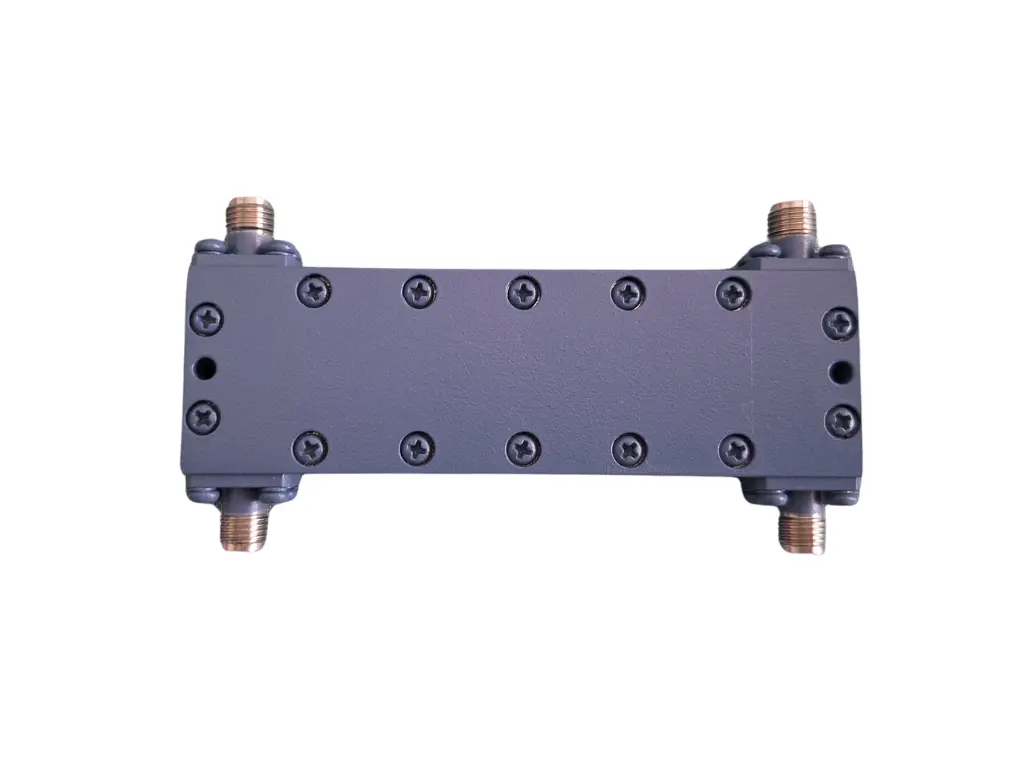

90° Hybrid Coupler, 3 dB, 1–6 GHz, SMA Female
Broadband Quadrature Hybrid for Equal Power Division
1–6 GHz · 3.01 dB · ≥ 20 dB isolation · ≤ 1.25:1 VSWR · SMA Female
Broadband 90-degree hybrid coupler designed for equal power division with quadrature phase relationship over 1–6 GHz.
1–6 GHz
3.01 dB split
≥ 20 dB isolation
SMA Female
In stock
Frequency
1–6 GHz
Split
3.01 dB
Isolation
≥ 20 dB
Price:
€ 110 (excl. VAT)
•
Availability:
In stock
Pricing and availability may change without notice.
Overview
Highlights
- Broadband 1–6 GHz operation
- Equal 3 dB power split
- 90° phase difference between outputs
- Isolation ≥ 20 dB
- 50 Ω system impedance
Usage note
- Handle RF connectors with care
- Keep mating surfaces clean and protected
- Performance values represent worst-case limits across the specified frequency range
- Typical values may be lower under nominal operating conditions
Applications
- Balanced amplifier systems
- I/Q signal generation
- Power combining and splitting
- Laboratory and RF test systems
Key specifications
| Frequency range | 1 to 6 GHz |
|---|---|
| Impedance | 50 Ω |
| Insertion loss | ≤ 0.70 dB (excluding 3.01 dB split) |
| Isolation | ≥ 20 dB |
| Amplitude balance | ≤ ±0.5 dB |
| Phase balance | ≤ ±5 deg |
| VSWR | ≤ 1.25:1 (all ports) |
| Power (average) | ≤ 50 W |
| Power (peak) | ≤ 1000 W |
| Connector type | SMA Female |
| Operating temperature | -55 to +85 °C |
| Humidity | Up to 95% non-condensing |
| Weight | 150 g |
| Housing | Aluminum 6061-T6, chem conversion |
| Connector body | Stainless steel, passivated |
| Center contacts | Beryllium copper, gold plated |
| RoHS compliance | Yes — lead-free |
Power handling is valid under matched load conditions. Exceeding rated limits may result in permanent damage. Specifications subject to change without notice.

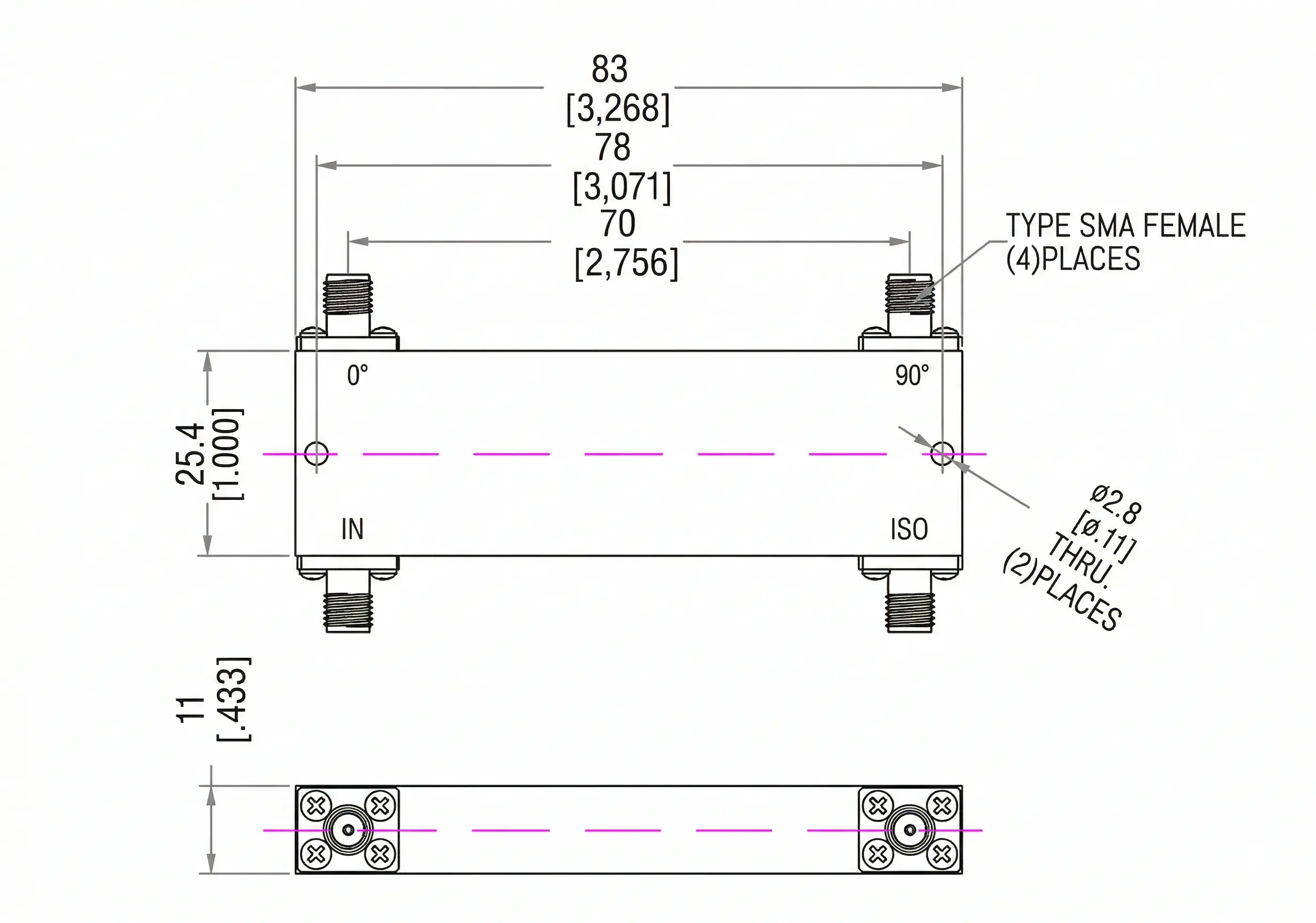

Mechanical
All dimensions are in mm [inch] where applicable.
