Model: ERTW-8MM-8LI-A
|
E-REON P/N: Z-000038
E-REON Torque Wrench, 8 mm, 8 lb-in
Preset Torque Tool for Precision RF Connectors
8 lb-in ±0.5 (0.90 ±0.06 N·m) · 8 mm (5/16″) hex · SMA / 3.5 / 2.92 / 2.4 / 1.85 mm
Preset torque wrench for repeatable tightening of precision RF connectors in laboratory, production, and service environments. Helps prevent over-torque damage and improves assembly consistency.
Preset Torque
8 mm Hex
8 lb-in
In stock
Torque
8 lb-in
Tolerance
±0.5 lb-in
Hex
8 mm
Price:
€ 100 (excl. VAT)
•
Availability:
In stock
Pricing and availability may change without notice.
Overview
Highlights
- Preset torque for consistent connector tightening
- 8 mm (5/16″) hex interface
- Suitable for SMA, 3.5 mm, 2.92 mm, 2.4 mm and 1.85 mm connectors
- Helps prevent over-torque damage on precision RF interfaces
Usage note
- Use for connector tightening only (not for loosening tight connectors)
- Refer to datasheet for usage guidance
Applications
- RF labs and calibration benches
- Production and assembly of RF cable harnesses
- Service and maintenance of RF systems
- ATE environments
Key specifications
| Torque setting | 8 ± 0.5 lb-in (0.90 ± 0.06 N·m) |
|---|---|
| Hex | 8 mm (5/16″) |
| Overall length | 167 mm |
| Compatible connectors | SMA / 3.5 / 2.92 / 2.4 / 1.85 mm |
Specifications subject to change without notice.

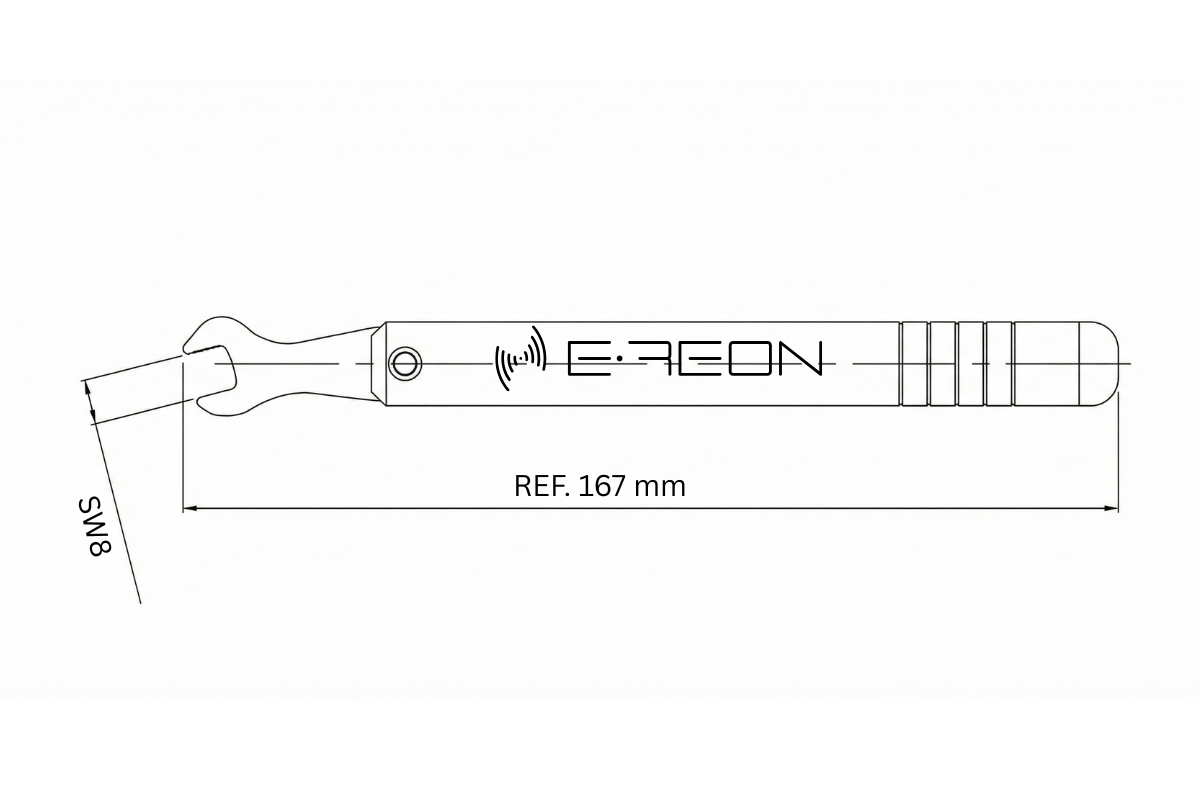

Mechanical
Dimensions shown for reference. See datasheet for details.
