Model: ERPD-0000-10000-4W-SMAF-MOD-A
E-REON P/N: Z-000042
E-REON 4-Way Resistive RF Power Divider/Splitter, DC–10 GHz Broadband 4-Way RF Signal Distribution
DC–10 GHz · 4-way resistive · ≤1.2 dB additional loss · ≤1.35:1 VSWR · SMA female
Compact 50-ohm four-way resistive RF power divider / splitter designed for broadband signal distribution from DC to 10 GHz with stable amplitude and phase balance.
DC–10 GHz
4-Way Resistive
≤1.2 dB Add. Loss
≤1.35:1 VSWR
SMA Female
Frequency
DC–10
GHz
Additional loss
≤1.2
dB
Power handling
0.2
W CW
Price:
€ 130
(excl. VAT)
•
Availability:
In stock
•
Typical lead time:
2 weeks
Pricing and availability may change without notice.
Overview
Highlights
- 4-way resistive RF power divider / splitter
- Broadband operation from DC to 10 GHz
- ≤1.2 dB additional insertion loss above the 12.04 dB split
- ≤±0.3 dB amplitude balance
- ≤±3° phase balance
- SMA female RF interfaces
System integration
- Designed for 50-ohm RF systems
- One input and four output ports
- 0.2 W continuous forward/reverse power handling
- Operating limits apply under continuous-wave conditions
- Handle RF connectors with care and keep mating surfaces clean
Applications
- Signal splitting for test and measurement
- Broadband RF distribution networks
- Bench setups, laboratory fixtures and prototypes
- General RF instrumentation
Key specifications
RF performance
| Frequency range | DC to 10 GHz |
|---|---|
| Impedance | 50 Ω |
| Insertion loss above 12.04 dB split | ≤ 1.2 dB |
| VSWR – input/output | ≤ 1.35:1 |
| Amplitude balance | ≤ ±0.3 dB |
| Phase balance | ≤ ±3° |
| Power handling – forward/reverse | ≤ 0.2 W continuous |
Environmental and mechanical
| Operating temperature | −55 to +85 °C ambient |
|---|---|
| Humidity | Up to 95%, non-condensing |
| Weight | Approx. 10 g |
Materials and compliance
| Housing | Aluminum 6061-T6, chemically treated |
|---|---|
| Connector body | Stainless steel, passivated |
| Center contacts | Beryllium copper, gold plated |
| RoHS compliance | Yes |
| REACH compliance | Yes |
Mechanical
| RF connectors | SMA female, 5 places |
|---|---|
| Port configuration | 1 input and 4 outputs |
| Overall length | 58.42 mm [2.302 in] |
| Housing height | 19.06 mm [0.750 in] |
| Housing thickness | 10.16 mm [0.400 in] |
| Output port spacing | 12.7 mm [0.500 in] |
| Mounting holes | Ø3.2 mm [0.125 in] through, 2 places |
Refer to the released mechanical drawing before completing the installation design.

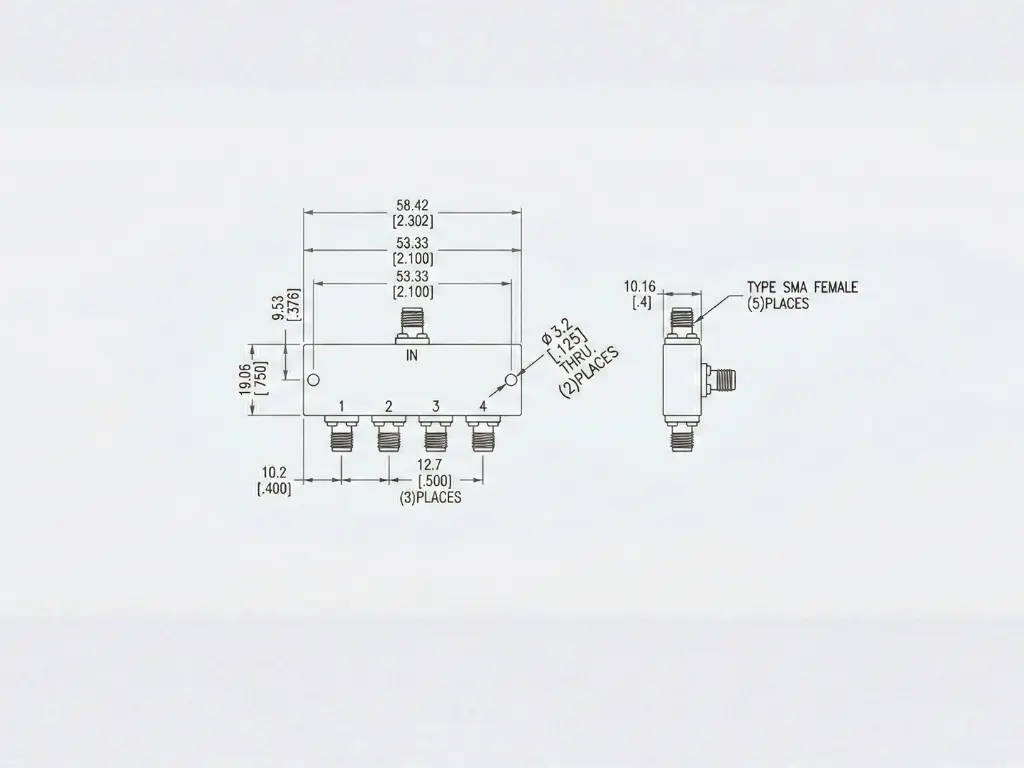

Mechanical drawing
Dimensions are shown in millimetres with inch equivalents in brackets.
