Model: ERPD-0800-2700-2W-SMAF-MOD-A
E-REON P/N: Z-000067
E-REON 2-Way RF Power Splitter/Combiner, 800–2700 MHz Wideband 2-Way RF Signal Distribution and Combining
800–2700 MHz · 2-way 0° · 0.3 dB insertion loss typ. · 22 dB isolation typ. · SMA female
Wideband 2-way RF power splitter and combiner designed for low insertion loss, good port isolation and balanced amplitude and phase performance in 50-ohm systems.
800–2700 MHz
2-Way 0°
0.3 dB Loss Typ.
22 dB Isolation Typ.
SMA Female
Frequency
800–2700
MHz
Insertion loss
0.3
dB typ.
Isolation
22
dB typ.
Price:
€ 200
(excl. VAT)
•
Availability:
Usually in stock
•
Typical lead time:
2 weeks
Pricing and availability may change without notice.
Overview
Highlights
- 2-way 0-degree power splitter and combiner
- Wideband operation from 800 MHz to 2700 MHz
- 0.3 dB typical insertion loss above the theoretical 3 dB split loss
- 22 dB typical isolation between output ports
- 0.05 dB typical amplitude unbalance
- 1.1-degree typical phase unbalance
System integration
- Designed for 50-ohm RF systems
- SMA female RF interfaces
- Maximum input power as a splitter: 10 W
- Observe the released operating and environmental limits
Applications
- Cellular infrastructure
- PCS and UHF systems
- GPS and L-band signal distribution
- Laboratory RF systems
- Test and measurement
- General RF signal distribution and combining
Key specifications
RF performance
| Frequency range | 800–2700 MHz |
|---|---|
| Configuration | 2-way, 0° |
| Insertion loss above theoretical 3 dB split loss | 0.3 dB typical, 0.5 dB maximum |
| Isolation | 22 dB typical, 18 dB minimum |
| Amplitude unbalance | 0.05 dB typical, 0.3 dB maximum |
| Phase unbalance | 1.1° typical, 3.0° maximum |
| VSWR – sum port | 1.3:1 typical, 1.5:1 maximum |
| VSWR – ports 1 and 2 | 1.2:1 typical, 1.3:1 maximum |
Operating and environmental limits
| Maximum input power as splitter | 10 W |
|---|---|
| Maximum internal dissipation | 0.125 W |
| DC current | 80 mA total, 40 mA for each port |
| Operating temperature | −55 to +90 °C ambient |
| Storage temperature | −55 to +100 °C |
Mechanical
| RF connectors | SMA female |
|---|---|
| Connector assignment | Sum port S; output ports 1 and 2 |
| Outline A | 2.00 in (50.80 mm) |
| Outline B | 2.00 in (50.80 mm) |
| Outline C | 0.75 in (19.05 mm) |
Refer to the released mechanical drawing before completing the installation design.

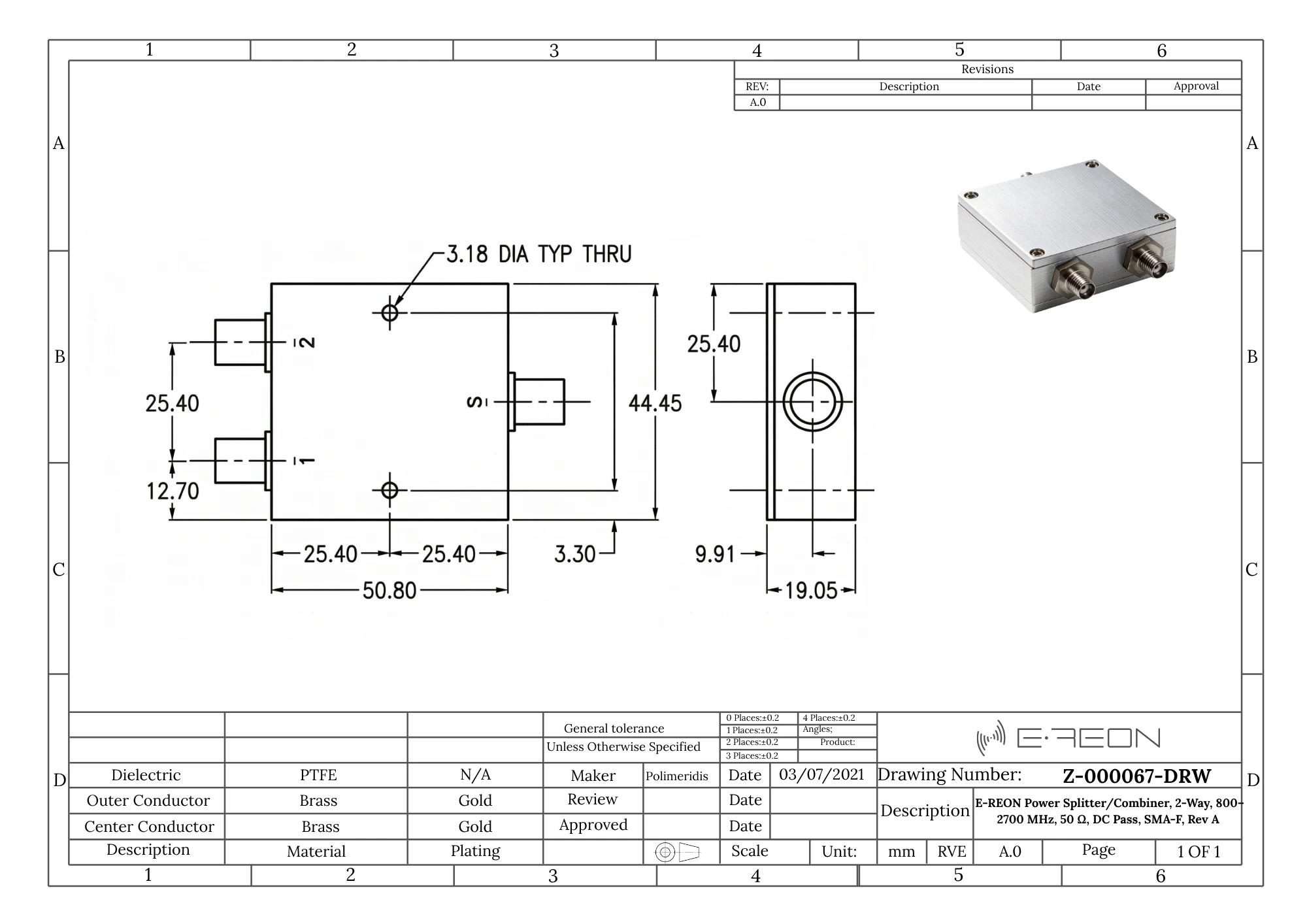

Mechanical drawing
Dimensions are shown for the SMA connector version.
