Model: ERL-0050-4000-36DB-5P-MOD-A
E-REON P/N: Z-000066
E-REON Low Noise Amplifier, 50 MHz–4 GHz, +5 V 0.8 dB Typ. Noise Figure · Wideband Receiver Gain
50 MHz–4 GHz · 0.8 dB typ. NF @ 900 MHz · 36 dB typ. gain @ 900 MHz · +5 V
Wideband low noise amplifier module for receiver front ends, instrumentation and RF signal chains requiring low noise figure, useful gain and compact integration.
50 MHz–4 GHz
0.8 dB Typ. NF
36 dB Typ. Gain @ 900 MHz
+22.6 dBm Typ. P1dB @ 900 MHz
+5 V Supply
Frequency
50 MHz–4
GHz
Noise figure
0.8
dB typ.
Gain @ 900 MHz
36
dB typ.
Price:
€ 300
(excl. VAT)
•
Availability:
Usually in stock
•
Typical lead time:
2 weeks
Pricing and availability may change without notice.
Overview
Highlights
- Wideband low noise amplifier covering 50 MHz to 4 GHz
- 0.8 dB typical noise figure at 900 MHz
- 36 dB typical gain at 900 MHz
- +22.6 dBm typical output P1dB at 900 MHz
- +33 dBm typical OIP3 at 900 MHz
- Compact module with SMA female RF input and output
System integration
- Designed for 50-ohm RF systems
- +5 V nominal DC supply
- Suitable for receiver front ends and broadband signal chains
- RF performance varies with operating frequency
- Observe the specified supply, input-power and thermal limits
Applications
- Repeaters and distributed antenna systems
- Mobile infrastructure
- LTE, WCDMA, CDMA and GSM systems
- General-purpose wireless systems
- Software-defined radio and amateur-radio systems
- RF test and measurement instrumentation
Key specifications
RF performance
| Frequency range | 50 MHz to 4 GHz |
|---|---|
| System impedance | 50 Ω |
| Gain @ 900 MHz | 33 dB min · 36 dB typ. · 40 dB max |
| Gain @ 1.9 GHz | 23 dB min · 26 dB typ. · 29 dB max |
| Noise figure @ 900 MHz | 0.8 dB typ. · 1.0 dB max |
| Noise figure @ 1.9 GHz | 0.8 dB typ. |
| Output P1dB @ 900 MHz | +17.4 dBm min · +22.6 dBm typ. |
| Output P1dB @ 1.9 GHz | +22.7 dBm typ. |
| Output IP3 @ 900 MHz | +30 dBm min · +33 dBm typ. |
| Output IP3 @ 1.9 GHz | +35 dBm typ. |
| Input return loss @ 900 MHz | 13 dB min · 16 dB typ. |
| Input return loss @ 1.9 GHz | 17.5 dB typ. |
| Output return loss @ 900 MHz | 14.5 dB min · 17.5 dB typ. |
| Output return loss @ 1.9 GHz | 16.5 dB typ. |
| Reverse isolation @ 900 MHz | 23.5 dB typ. |
| Reverse isolation @ 1.9 GHz | 19 dB typ. |
DC and operating conditions
| Supply voltage | 3 to 5.25 V · 5 V nominal |
|---|---|
| Quiescent current | 56 mA min · 92 mA typ. · 108 mA max |
| Operating temperature | −40 to +85 °C |
| Storage temperature | −65 to +150 °C |
Absolute maximum ratings
| Supply voltage | 5.5 V max |
|---|---|
| Supply current | 200 mA max |
| RF input power | +25 dBm max |
| Power dissipation | 660 mW max |
Mechanical
| RF input | SMA female |
|---|---|
| RF output | SMA female |
| DC connection | Solder pins |
| Enclosure dimensions | 28.58 × 23.83 × 12.32 mm |
| Housing | Aluminum T-6061 |
| Housing finish | Clear chromate per MIL-C-5541 Type II, Class 3 |
Refer to the released mechanical drawing for complete dimensions, mounting information and interface locations.

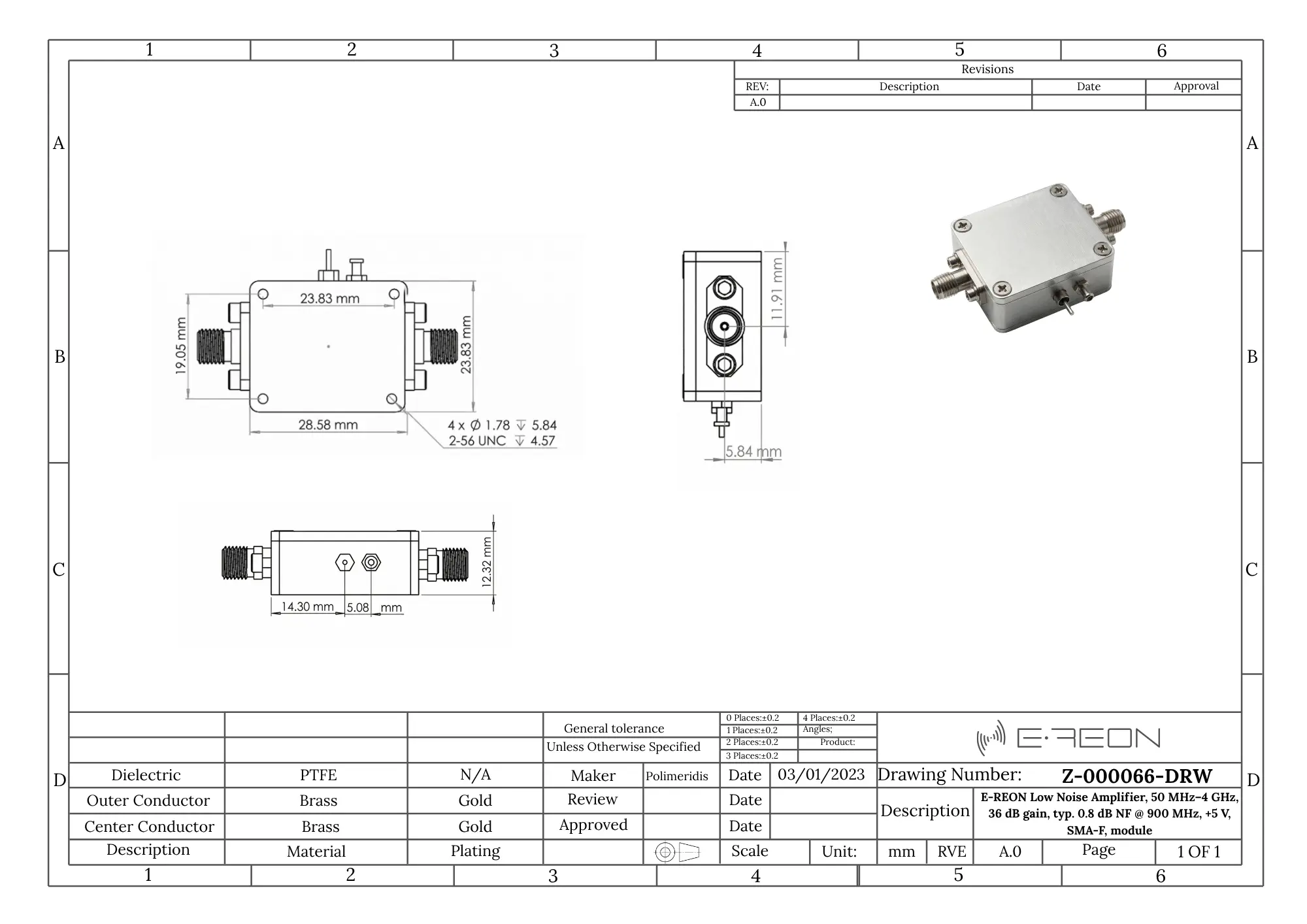

Mechanical drawing
Refer to the drawing for dimensional, mounting and connector information.
