Model: ERPD-0000-10000-4W-SMAF-MOD-A
|
E-REON P/N: Z-000042

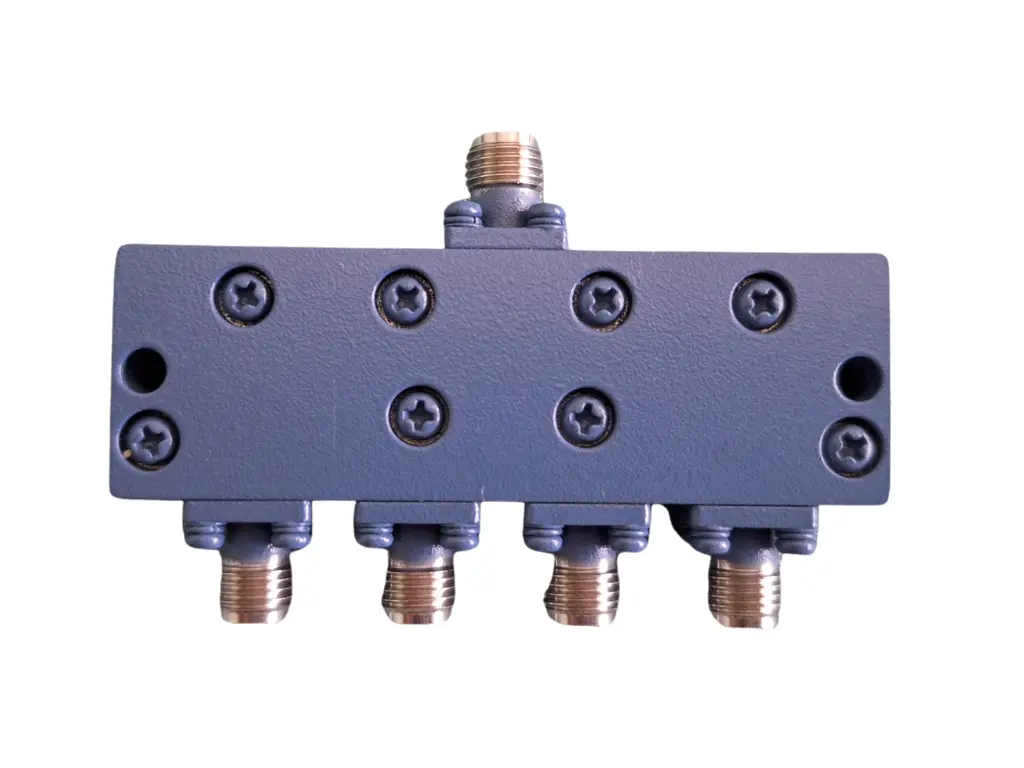

4-Way Resistive Power Divider / Splitter, DC–10 GHz, SMA Female
Compact Broadband 50 Ω Resistive Splitter
DC–10 GHz · 50 Ω · 0.2 W · SMA Female
Compact 50 Ω four-way resistive splitter for broadband RF applications. Provides equal power division with stable performance across DC to 10 GHz.
DC–10 GHz
50 Ω
0.2 W
SMA Female
In stock
Frequency
DC–10 GHz
Insertion loss
≤ 1.2 dB
Power
0.2 W
Price:
€ 130 (excl. VAT)
•
Availability:
In stock
Pricing and availability may change without notice.
Overview
Highlights
- Broadband DC to 10 GHz resistive power divider
- Equal split, stable amplitude & phase balance
- Low additional insertion loss across band
- Compact module with SMA Female ports
Usage note
- Handle RF connectors with care
- Keep mating surfaces clean and protected
- Performance values represent worst-case limits across the specified frequency range
Applications
- Signal splitting for test and measurement
- Broadband RF distribution networks
- Bench setups, lab fixtures, and prototypes
- General RF instrumentation
Key specifications
| Frequency range | DC to 10 GHz |
|---|---|
| Impedance | 50 Ω |
| Insertion loss (above 12.04 dB split) | ≤ 1.2 dB |
| VSWR (input/output) | ≤ 1.35:1 |
| Amplitude balance | ≤ ±0.3 dB |
| Phase balance | ≤ ±3 deg |
| Power handling (forward/reverse) | ≤ 0.2 W continuous |
| Operating temperature | -55 to +85 °C |
| Humidity | Up to 95% non-condensing |
| Weight | 10 g approx. |
| Housing | Aluminum 6061-T6, chemically treated |
| Connector body | Stainless steel, passivated |
| Center contacts | Beryllium copper, gold plated |
| RoHS compliance | Yes |
| REACH compliance | Yes |
Specifications subject to change without notice.
Mechanical

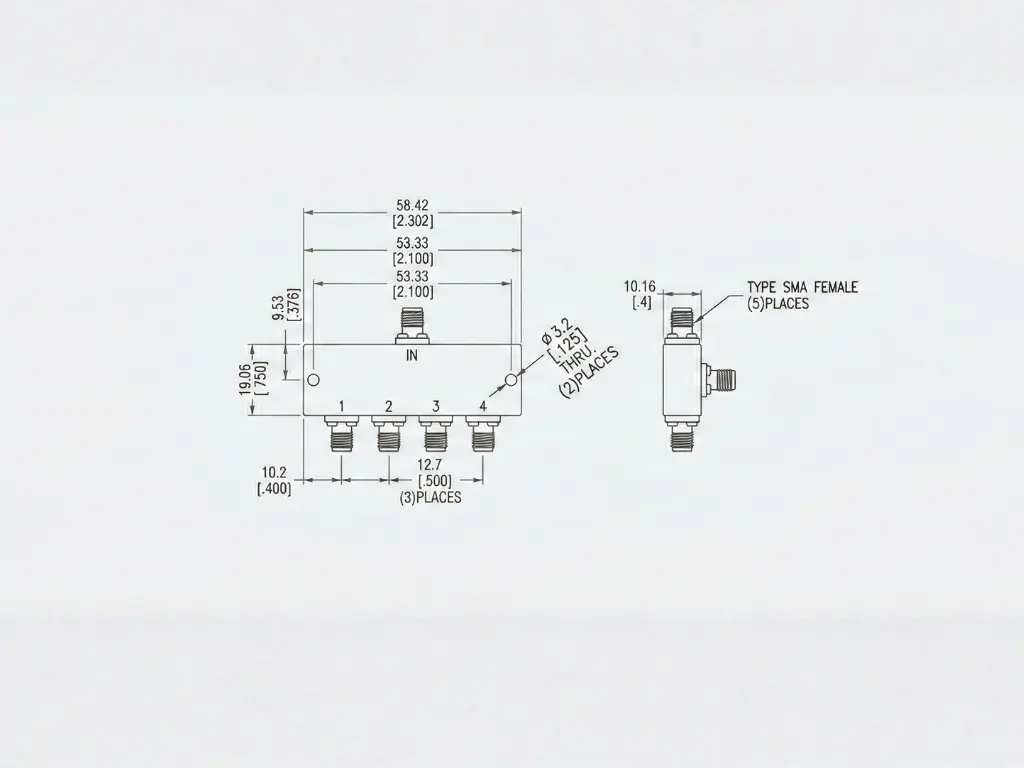

Dimensions and layout per the mechanical drawing. All dimensions are in mm [inch] where applicable.
