Model: ERDC-1000-6000-20DB-DUAL-SMAF-MOD-A
|
E-REON P/N: Z-000043
Dual Directional Coupler, 20 dB, 1–6 GHz, 30 W, SMA Female
Broadband Dual Coupler for Forward and Reverse Power Sampling
1–6 GHz · 20 dB · ≥ 12 dB directivity · 30 W · SMA Female
Broadband dual directional coupler for forward and reverse power sampling. Designed for 50 Ω RF systems with stable coupling over 1–6 GHz.
1–6 GHz
20 dB
30 W
SMA Female
In stock
Frequency
1–6 GHz
Coupling
20 dB
Power
30 W
Price:
€ 170 (excl. VAT)
•
Availability:
In stock
Pricing and availability may change without notice.
Overview
Highlights
- Dual directional coupler for forward and reverse sampling
- Frequency range: 1–6 GHz
- Nominal coupling: 20 dB
- Rated power: 30 W
- 50 Ω system impedance
Usage note
- Handle RF connectors with care
- Keep mating surfaces clean and protected
- Performance values represent worst-case limits across the specified frequency range
- Typical values may be lower under nominal operating conditions
Applications
- Forward/reverse power monitoring
- VSWR / return loss measurements
- Lab test setups and RF instrumentation
- System integration and calibration fixtures
Key specifications
| Frequency range | 1 to 6 GHz |
|---|---|
| Impedance | 50 Ω |
| Insertion loss | ≤ 1.20 dB (excluding coupling loss 0.08 dB) |
| Coupling factor | 20 ± 1 dB |
| Coupling sensitivity | ≤ ±1 dB |
| Directivity | ≥ 12 dB |
| VSWR (primary) | ≤ 1.30:1 |
| VSWR (secondary) | ≤ 1.30:1 |
| Power handling (incident) | ≤ 30 W CW average |
| Power handling (reflected) | ≤ 30 W CW average |
| Connector type | SMA Female |
| Operating temperature | 0 to +45 °C ambient |
| Operating humidity | Up to 95% non-condensing |
| Weight | 90 g typical |
| External finish | Painted Blue RAL #5007 |
| Housing | Aluminum 6061-T6, clear chem conversion |
| Connector body | Stainless steel, passivated |
| Center contacts | Beryllium copper, gold plated |
| RoHS compliance | Yes |
| Solder | Lead free, RoHS compliant |
Power handling is guaranteed when the load VSWR is within 1.50:1. Specifications subject to change without notice.

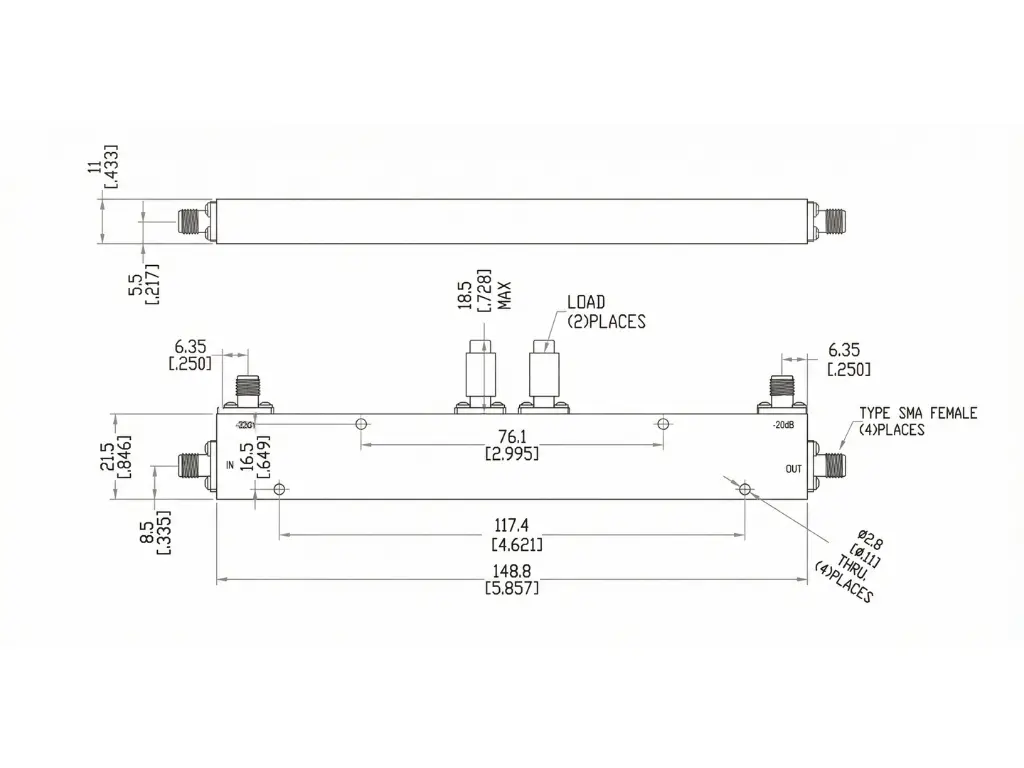

Mechanical
Dimensions and layout per the mechanical drawing. All dimensions are in mm [inch] where applicable.
