Model: ERHC-1000-6000-3DB-90D-SMAF-MOD-A
E-REON P/N: Z-000044
E-REON 90° Hybrid Coupler, 3 dB, 1–6 GHz, 50 W Quadrature Power Division & Combining
1–6 GHz · 3 dB split · 90° phase relationship · ≥20 dB isolation · 50 W average
Broadband 90-degree hybrid coupler designed for equal power division and combining with a quadrature phase relationship between signal paths.
1–6 GHz
3 dB Hybrid
90° Quadrature
≥20 dB Isolation
50 W Average
Frequency
1–6
GHz
Nominal split
3.01
dB
Average power
50
W
Price:
€ 110
(excl. VAT)
•
Availability:
In stock
•
Typical lead time:
1 week
Pricing and availability may change without notice.
Overview
Highlights
- 90-degree hybrid coupler for quadrature RF signal paths
- Broadband operation from 1 to 6 GHz
- 3.01 dB nominal equal power split
- ≥20 dB isolation
- ≤±0.5 dB amplitude balance
- ≤±5° phase balance
- SMA female RF interfaces
System integration
- Designed for 50-ohm RF systems
- Supports both power division and combining applications
- Nominal 90-degree phase relationship between output signal paths
- 50 W average and 1000 W peak power handling
- Power handling applies under matched load conditions
Applications
- Balanced amplifier systems
- I/Q and quadrature signal generation
- RF power division and combining
- Laboratory test systems and RF instrumentation
Key specifications
RF performance
| Frequency range | 1 to 6 GHz |
|---|---|
| Impedance | 50 Ω |
| Nominal split | 3.01 dB |
| Additional insertion loss | ≤ 0.70 dB |
| Insertion-loss reference | Excluding the nominal 3.01 dB power split |
| Isolation | ≥ 20 dB |
| Amplitude balance | ≤ ±0.5 dB |
| Nominal phase relationship | 90° |
| Phase balance | ≤ ±5° |
| VSWR | ≤ 1.25:1, all ports |
| Average power handling | ≤ 50 W |
| Peak power handling | ≤ 1000 W |
| RF connectors | SMA female |
Environmental and mechanical
| Operating temperature | −55 to +85 °C |
|---|---|
| Humidity | Up to 95%, non-condensing |
| Weight | 150 g |
Materials and compliance
| Housing | Aluminum 6061-T6 |
|---|---|
| Housing finish | Chemical conversion |
| Connector body | Stainless steel, passivated |
| Center contacts | Beryllium copper, gold plated |
| RoHS compliance | Yes |
| Solder | Lead free |
Mechanical
| RF connectors | SMA female, 4 places |
|---|---|
| Overall length | 83 mm |
| Body height | 25.4 mm |
| Body thickness | 11 mm |

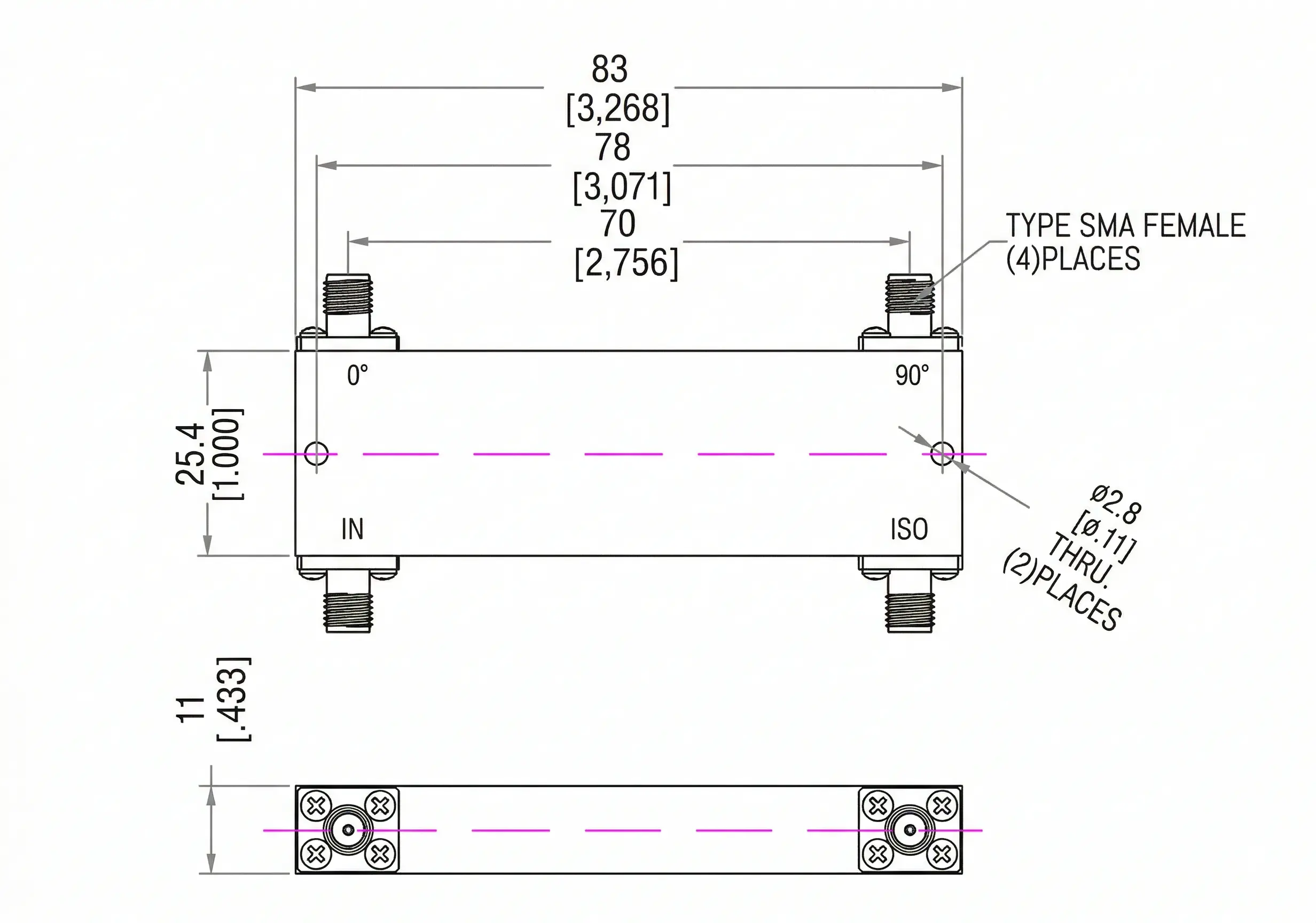

Refer to the released mechanical drawing for complete dimensions, port locations and installation details.
Mechanical drawing
Refer to the drawing for dimensional and mounting information.
