Model: ERDC-1000-6000-20DB-DUAL-SMAF-MOD-A
E-REON P/N: Z-000043
E-REON Dual Directional Coupler, 20 dB, 1–6 GHz, 30 W Forward & Reverse RF Power Sampling
1–6 GHz · 20 ±1 dB coupling · ≥12 dB directivity · 30 W CW · SMA female
Broadband dual directional coupler designed for forward and reverse RF power sampling in 50-ohm systems from 1 to 6 GHz.
1–6 GHz
20 ±1 dB Coupling
≥12 dB Directivity
30 W CW
SMA Female
Frequency
1–6
GHz
Coupling
20 ±1
dB
Power handling
30
W CW
Price:
€ 170
(excl. VAT)
•
Availability:
In stock
•
Typical lead time:
2 weeks
Pricing and availability may change without notice.
Overview
Highlights
- Dual directional coupler for forward and reverse RF sampling
- Broadband operation from 1 to 6 GHz
- 20 ±1 dB coupling across the specified frequency range
- ≥12 dB directivity
- 30 W CW incident and reflected power handling
- SMA female RF interfaces
System integration
- Designed for 50-ohm RF systems
- Forward and reverse coupled outputs support bidirectional power sampling
- Power handling is guaranteed when load VSWR is within 1.50:1
- Keep RF connector mating surfaces clean and protected
Applications
- Forward and reverse RF power monitoring
- VSWR and return-loss measurements
- Laboratory test setups and RF instrumentation
- System integration and calibration fixtures
Key specifications
RF performance
| Frequency range | 1 to 6 GHz |
|---|---|
| Impedance | 50 Ω |
| Insertion loss | ≤ 1.20 dB |
| Insertion-loss reference | Excluding coupling loss of 0.08 dB |
| Nominal coupling | 20 dB |
| Coupling tolerance | ±1 dB |
| Coupling sensitivity | ≤ ±1 dB |
| Directivity | ≥ 12 dB |
| VSWR – primary | ≤ 1.30:1 |
| VSWR – secondary | ≤ 1.30:1 |
| Incident power handling | ≤ 30 W CW average |
| Reflected power handling | ≤ 30 W CW average |
| RF connectors | SMA female |
Environmental and mechanical
| Operating temperature | 0 to +45 °C ambient |
|---|---|
| Operating humidity | Up to 95%, non-condensing |
| Weight | 90 g typical |
Materials and compliance
| External finish | Painted blue, RAL 5007 |
|---|---|
| Housing | Aluminum 6061-T6, clear chemical conversion |
| Connector body | Stainless steel, passivated |
| Center contacts | Beryllium copper, gold plated |
| RoHS compliance | Yes |
| Solder | Lead free |
Mechanical
| RF connectors | SMA female, 4 places |
|---|---|
| Directional sampling | Forward and reverse |
| Overall length | 148.8 mm [5.857 in] |
| Mounting holes | Ø2.8 mm through, 4 places |
Refer to the released mechanical drawing for complete dimensions and installation details.

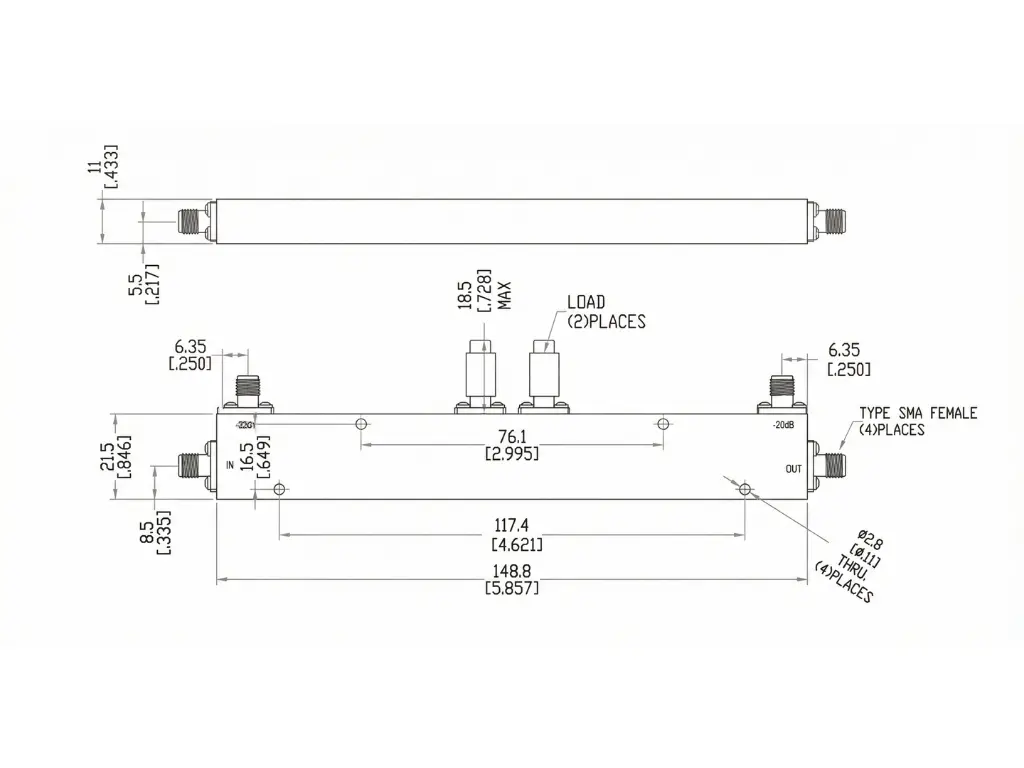

Mechanical drawing
Dimensions are shown in millimetres with inch equivalents in brackets.
